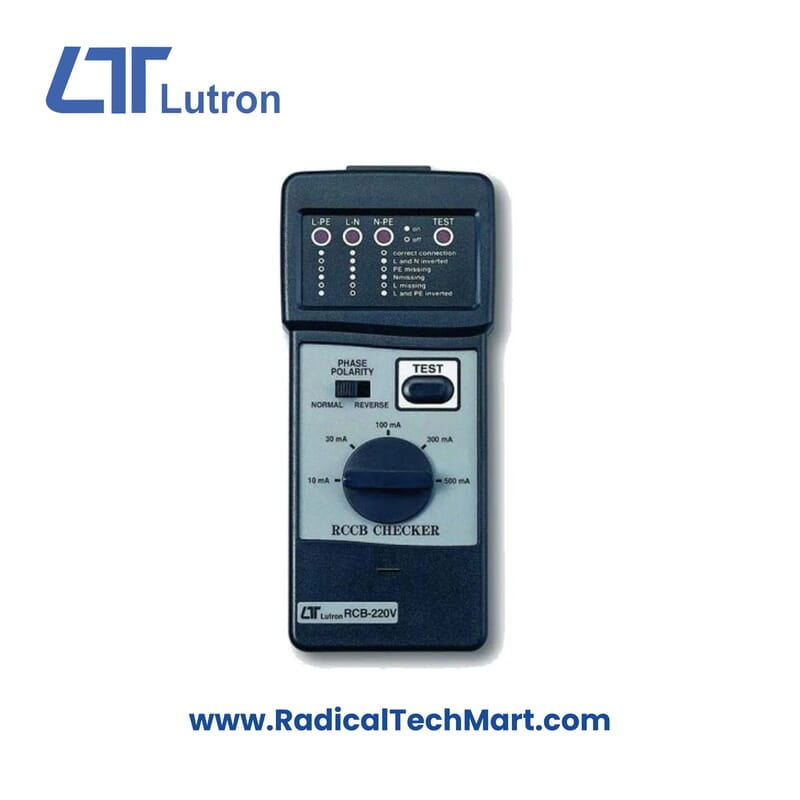

Lutron RCCB CHECKER 220v

Product Summary:
The Lutron RCCB CHECKER 220V is a compact and essential tool for electrical professionals, enabling accurate verification of RCCB performance and socket pin configuration.

Key Features:

• Tests RCCBs with tripping current settings of 10 mA to 500 mA

• Detects phase and phase inversion

• 3-LED display indicates socket pin configuration (L-N, L-PE, N-PE)

• 1 LED displays tripping current pulse

• Battery-free operation; powered directly from the mains

• Fast test current duration: ~140 ms (as per DIN VDE)

Applications:

• Verification of RCCB function in electrical installations

• Testing of shock-proof plug pin assignments

• Used by electricians, inspectors, and facility maintenance

Product Benefits:

• Ensures electrical safety compliance

• Saves time with quick diagnostics

• Easy-to-read LED indicators

• Operates without external power sources

• Covers wide RCCB tripping range for versatile testing

FAQs:
Q.1 What tripping current settings can this checker test?
 It can test RCCBs with tripping current ratings of 10 mA, 30 mA, 100 mA, 300 mA, and 500 mA.

Q.2 Does this device require batteries to operate?
No, it operates directly using the power from the mains socket being tested.

Q.3 How is the socket wiring indicated on the device?
The device uses 3 LEDs to show pin assignment and 1 LED for tripping current pulse display.
